·      2 channels which are respectively controlled by independent knobs

·      100 MHZ and 150MHZ analog channel bandwidth

·      Sampling rate up to 1 GSa/s

·      8M memory depth

·      Vertical range 2mV/div ~ 10V/div

·      Built-in 1 CH 25MHz waveform generator (DSO2D10, DSO2D15)

·      Vertical resolution: 8bit

·      Trigger: Edge, Pulse, Video, Slope, Overtime, Window, Pattern, Interval, Under Amp, UART, LIN, CAN, SPI, IIC

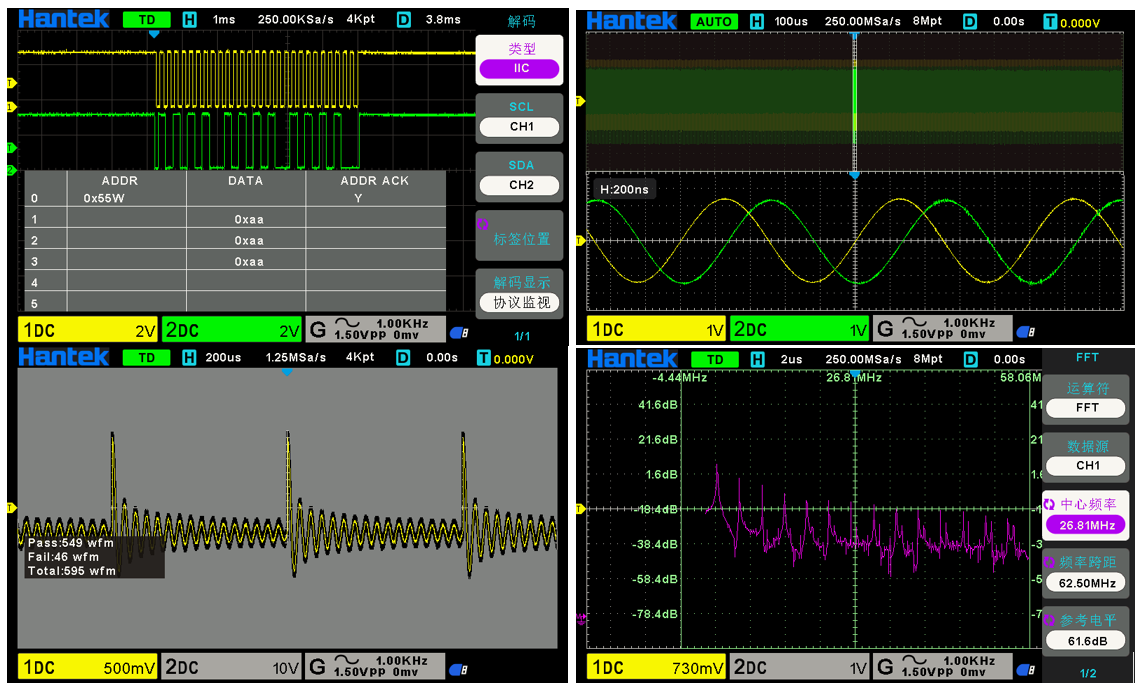

·      BUS decode and protocol analysis: RS232/UART, I2C, SPI, CAN, LIN

·      Can save multiple data formats, such as settings, waveforms, reference waveforms, CSV, pictures

·      A 3-digit digital voltage meter and a 6-digit hardware frequency indicator

·      32 kinds of auto measurements with statistics, real-time statistics of maximum, minimum, standard deviation and etc.

·      2 sets of digital voltmeters

·      Support threshold testing, free measurements within the screen

         ·      Abundant SCPI remote command control
         ·     USB Host/Device

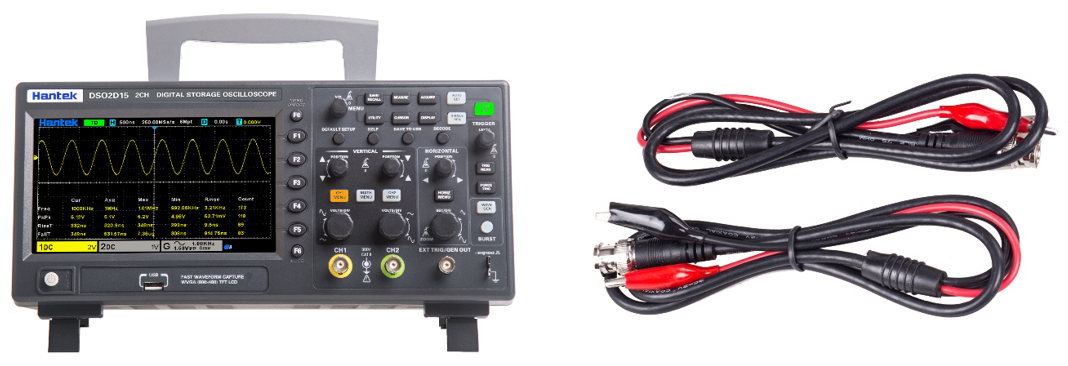

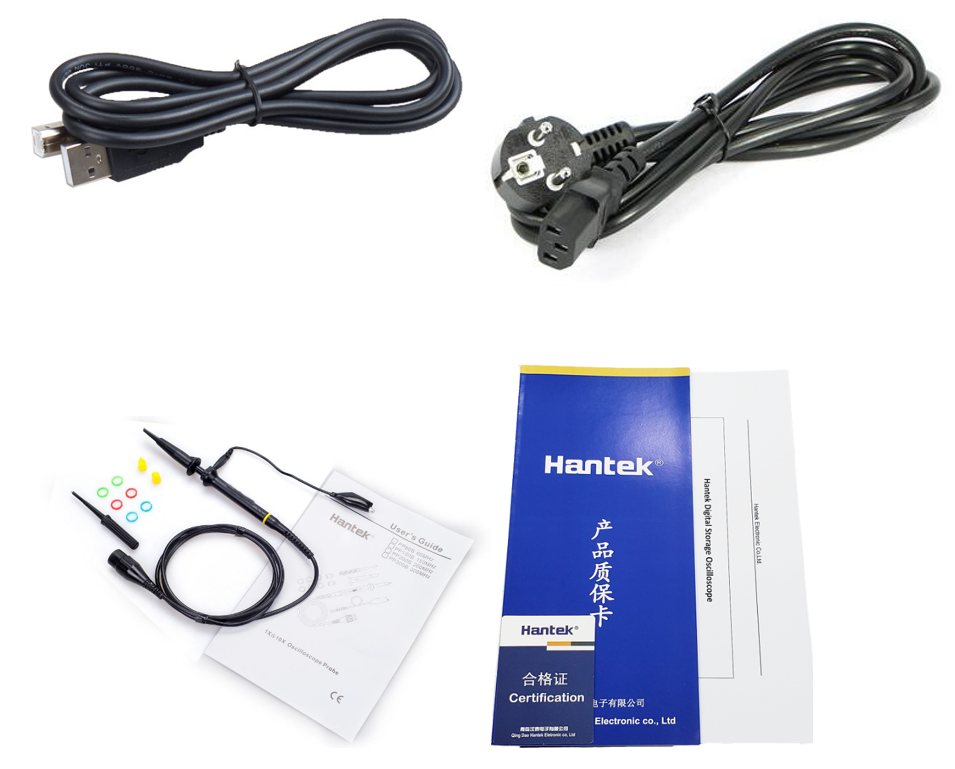

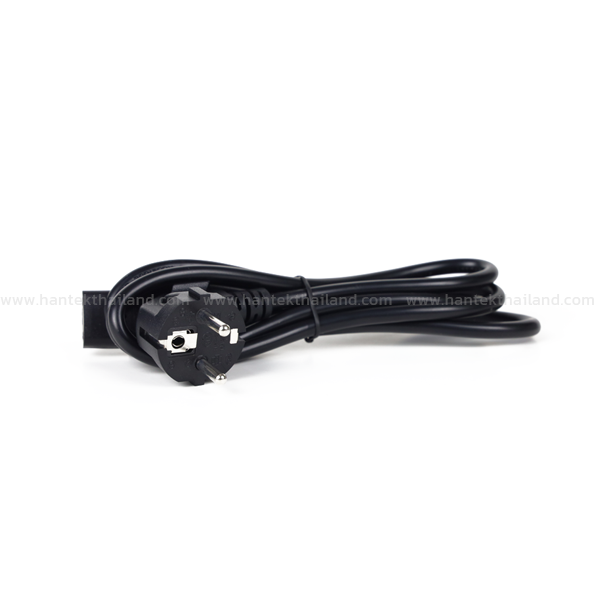

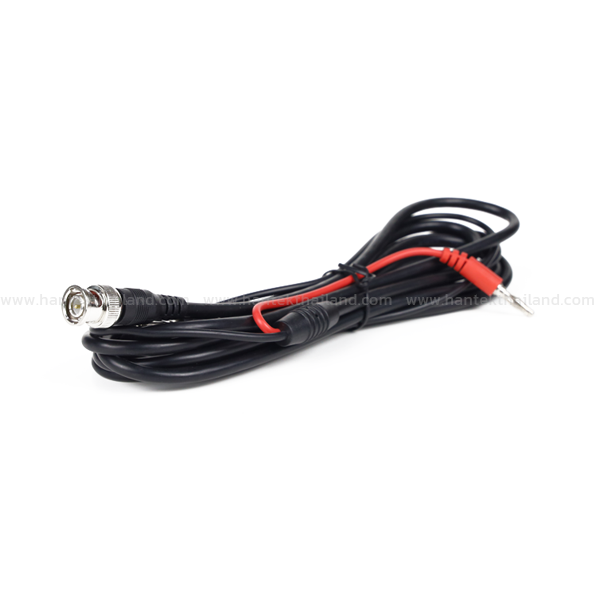

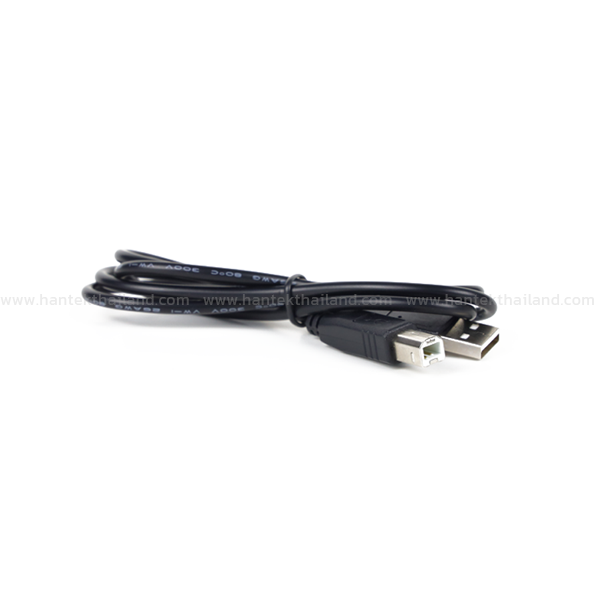

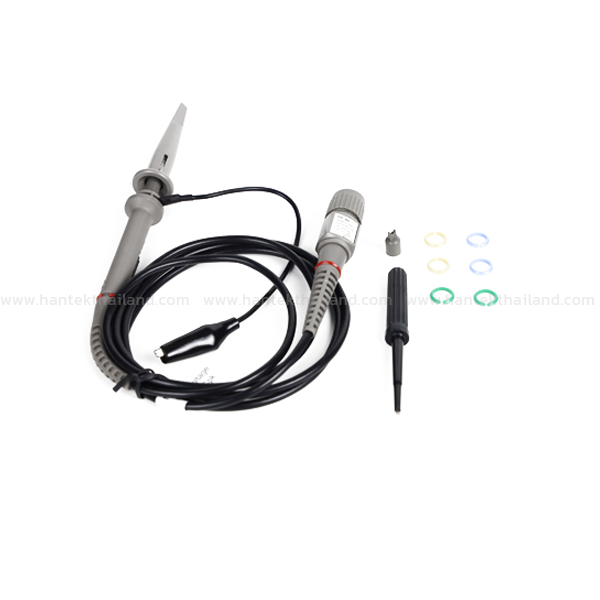

อุปกรณ์ประกอบการใช้งาน :
