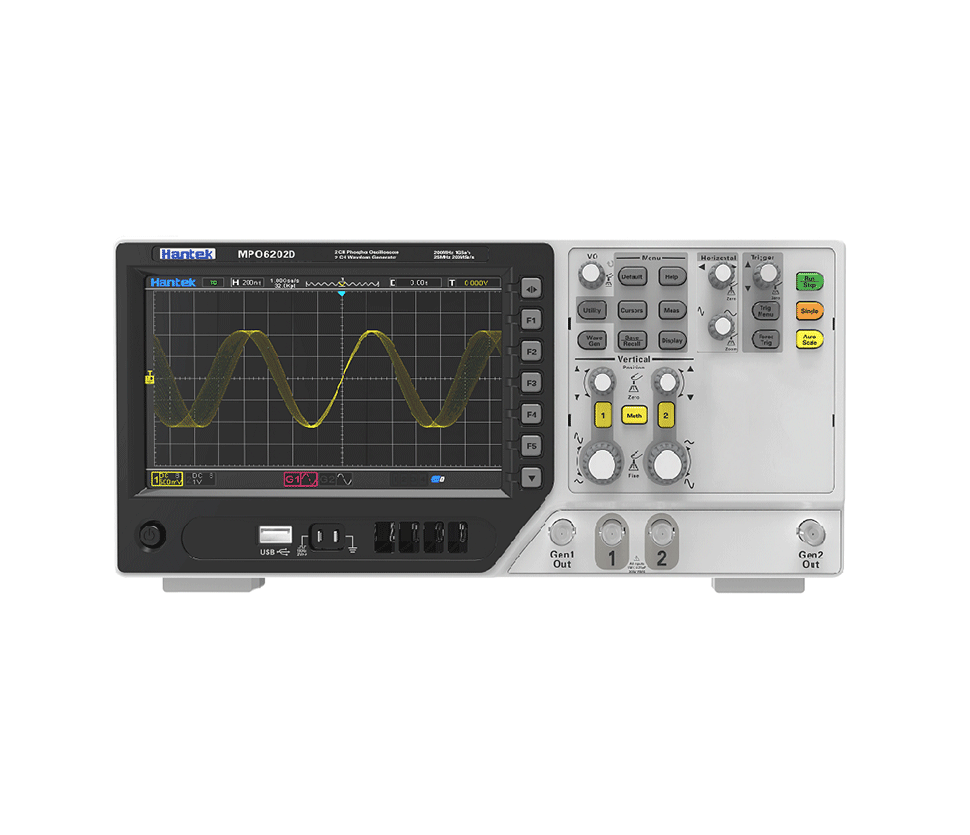

Hantek DPO6082C ดิจิตอลฟอสเฟอร์ออสซิลโลสโคป แบบตั้งโต๊ะ ขนาด 80 MHz 2ช่อง + AFG (จอสัมผัส)

รุ่นสินค้า :

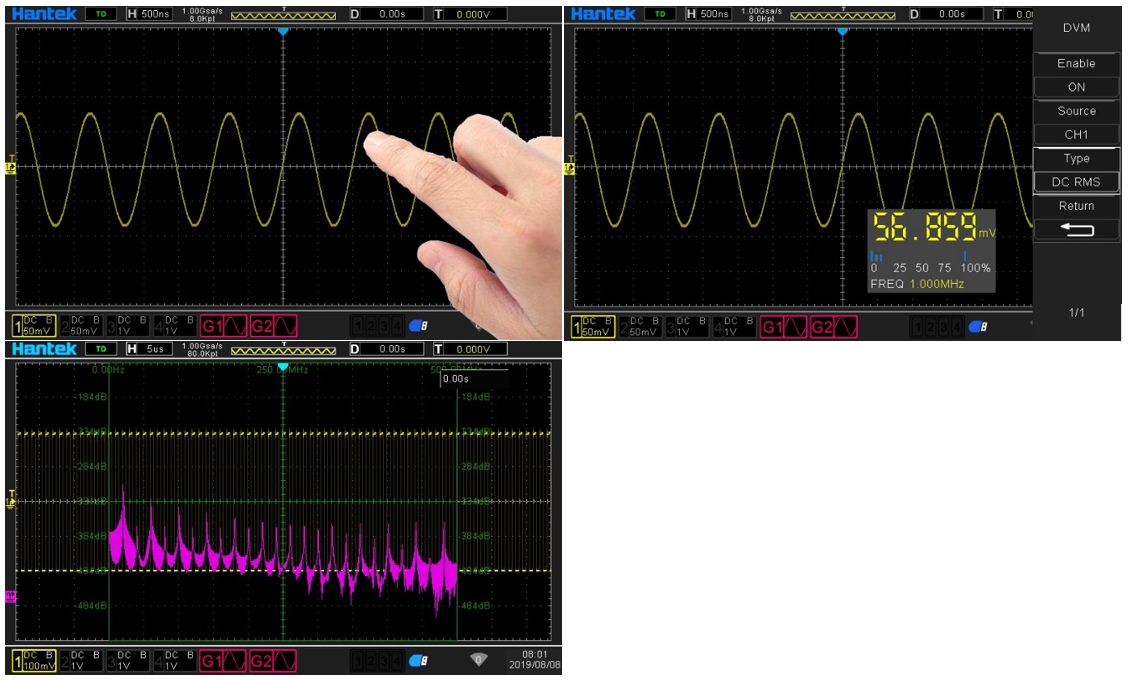

·      Six in one oscilloscope: 2 channels oscilloscope + 2 channels waveform generator + digital voltmeter + FFT spectral analysis.

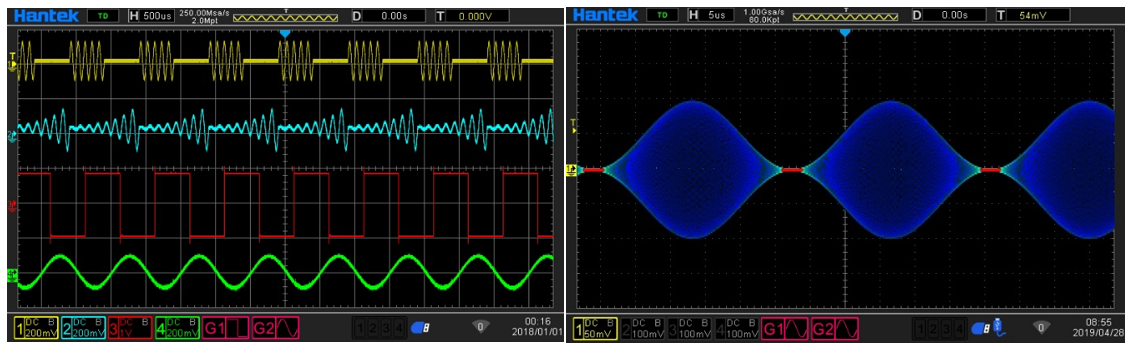

·      60,000 wfms/s (dots display)/400,000 wfms/s (dots display quick acquisition mode) waveform capture rate.

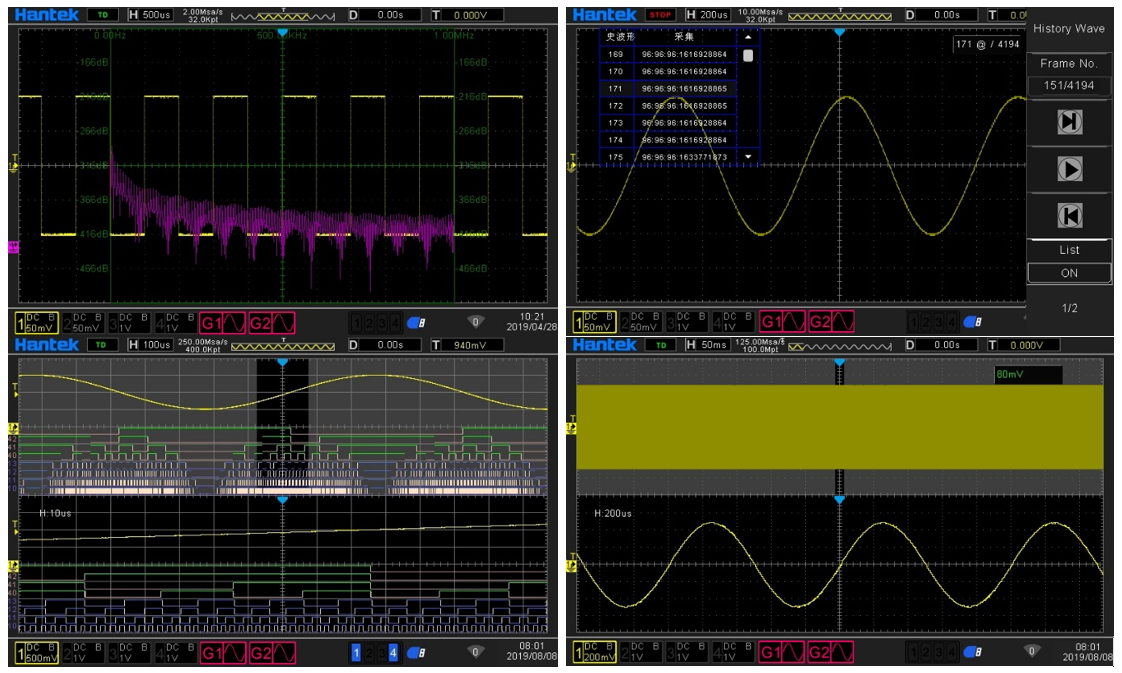

·      Segmented acquisition function, support to capture up to 80,000 sections. 256 grade color display.

·      Up to 16 kinds of trigger functions, including 5 kinds of protocol triggers. Supply 5 serial decoding option.

·      1 GSa/s real-time sample rate of the analog channels. 64 Mpts standard memory depth.

·      1 GSa/s real-time sample rate of the digital channels.

·      200 MHz, 100 MHz and 80 MHz analog channel bandwidth.

·      Low base noise, 500uV/div to 10 V/div ultra-wide vertical dynamic range.

·      7-inch WVGA capacitive touch screen, (800*480) TFT, with ultra-wide screen, vivid picture, low-power consumption and long service life.

·      Auto measurement of 42 kinds of waveform parameters (with statistics).

·      5 bits digital voltage meter and 6 bits hardware frequency indicator function.

·      Bode diagram function (the oscilloscopes with signal source function can use).

·      Multiple waveform math operation functions. Event search function.

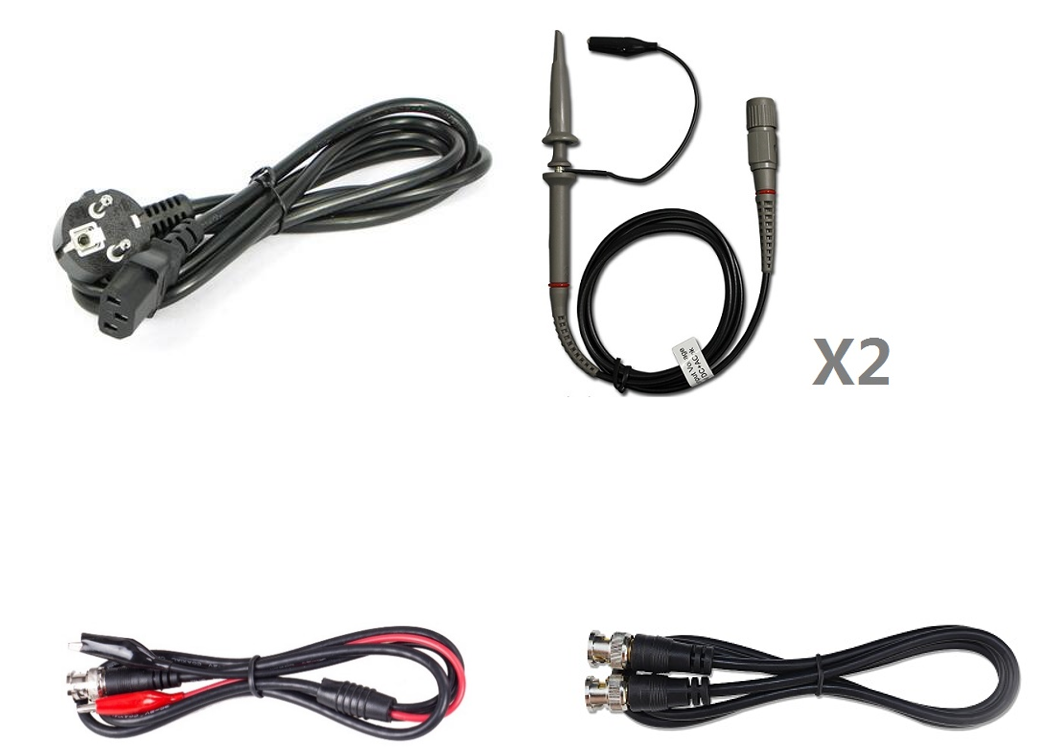

อุปกรณ์ประกอบการใช้งาน :
