Hantek 2D42 ออสซิลโลสโคปขนาดเล็กแบบพกพาขนาด 40 MHz 2 ช่อง + ฟังก์ชันเจนเนอเรเตอร์ + ดิจิตอลมัลติมิเตอร์

รุ่นสินค้า :

รายละเอียดสินค้า :

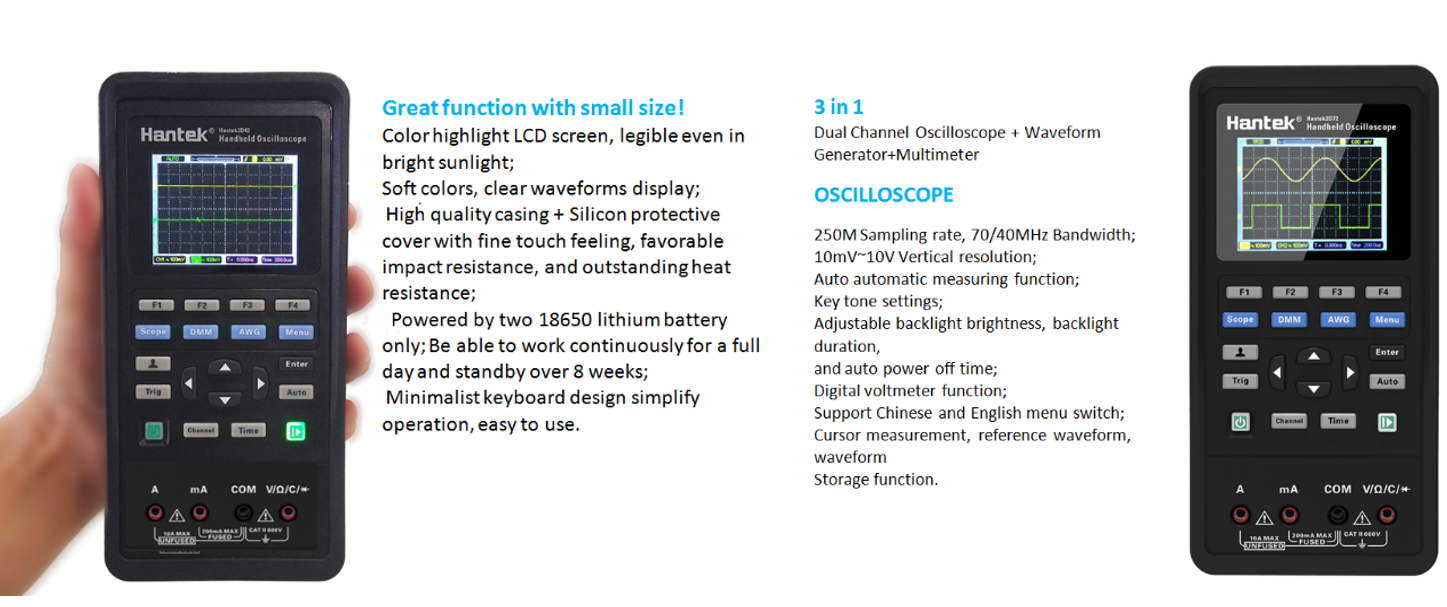

·        Oscilloscope + Waveform Generator + Multimeter: This multi-purpose station own three universal test instrument functions. It is outgoing right-hand product for engineers.

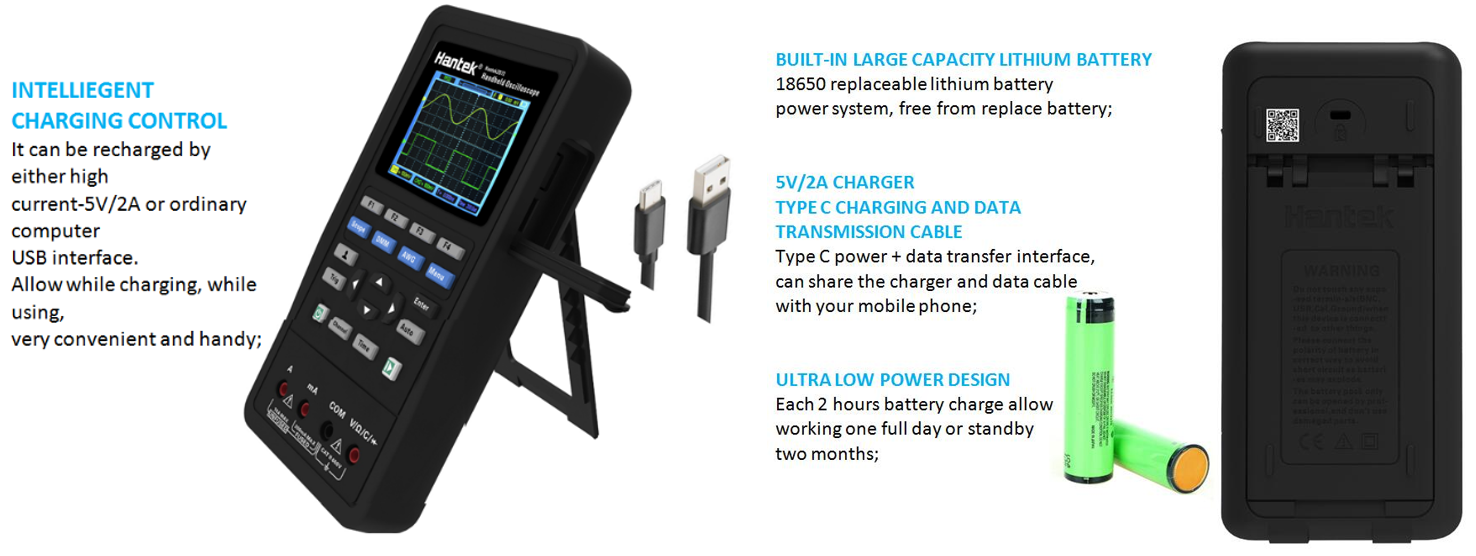

·        Intelligent charging control: Its lithium batteries can be recharged byeither high current-5V/2A or ordinary computer USB interface. Allow while charging, while using, very convenient and handy;

·        Ultra-low power design: Type C charging interface, after every recharge of 2 hours, the device can be used continuously for a full day or standby more than two months;

·        Large-capacity lithium battery power supply:  18650 replaceable lithium battery power system, free from replace battery;

·        5V/2A charger + Type C charging cable: Type C power + data transfer interface, can share the charger and data cable with your mobile phone;

·        AUTO one-key test: Magic tool and essential function for test newbie;

·        Volume small, one hand holding: The 45 degree suspension bracket design provide you a work station anywhere anytime;

·        One key page out, quick compare two groups of reference waveforms + 6 groups of waveforms storage, simple and effective;

·        Digital voltmeter function: automatic frequency and amplitude measurement, convenient and worry-free;

·        Its cursor measurement functionsupports time and voltage manual measurement, and measure the required waveforms accurately;

·        One-click switching its Chinese and English language menu;

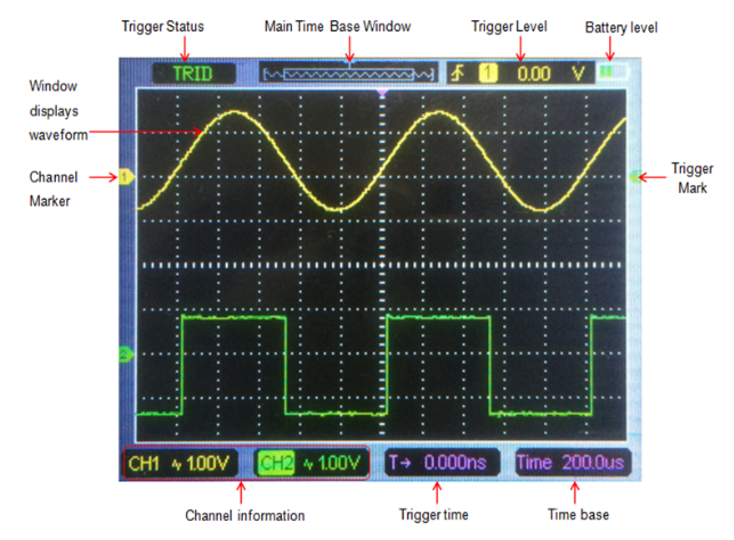

·        Color LCD screen: exquisite and smooth lines make the waveforms clear and undistorted when magnify;

·        Minimalist keyboard design simplify operation, convenient to use;

·        Unibody casing: fine touch feeling, favorable impact resistance, outstanding heat resistance, easy to disassemble;

·        Self-calibration function: free from level drift after long time unused;

·        Universal multimeter function: voltage, current, resistance, diode, capacitor, on-off test;

·        Waveform generator output function: output sine, square, triangle, trapezoidal and other waveforms; sine up to 25MHz;

·        Function of video help：scan code on back of machine to get help of video course;

·        The PC software supports windows7/8/10 32-bit and 64-bit.

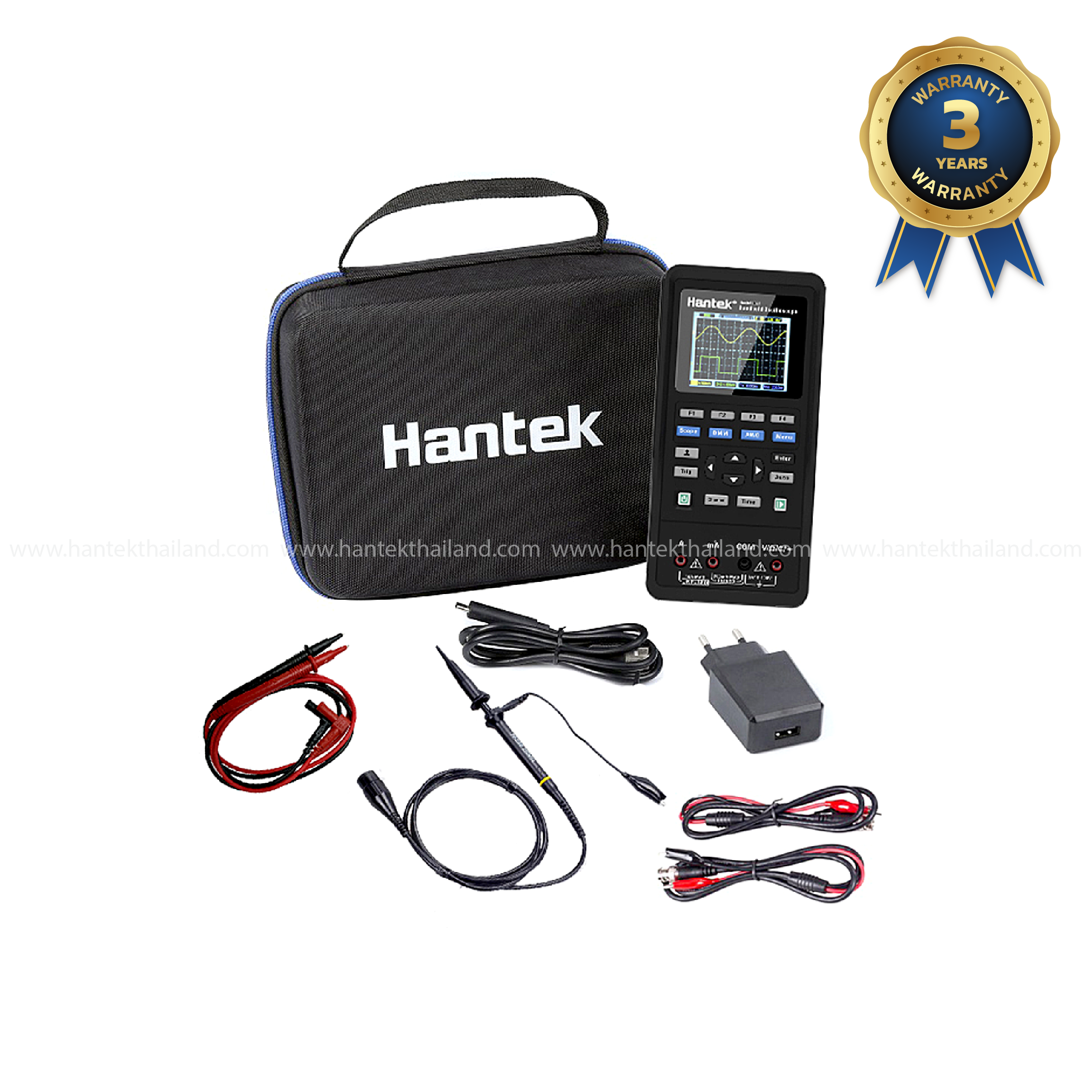

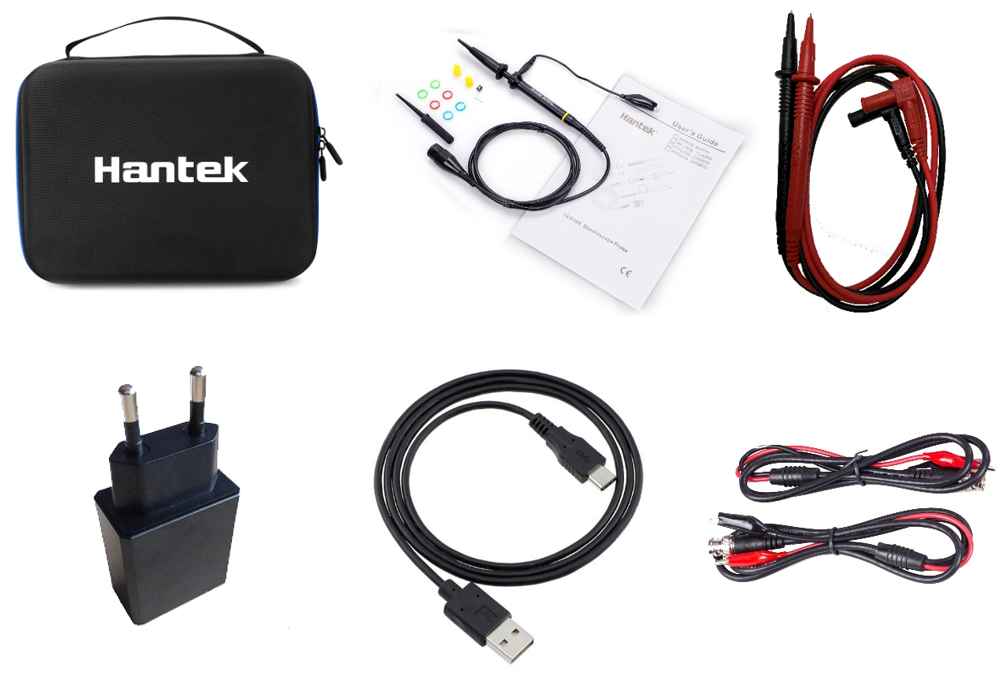

อุปกรณ์ประกอบการใช้งาน :
