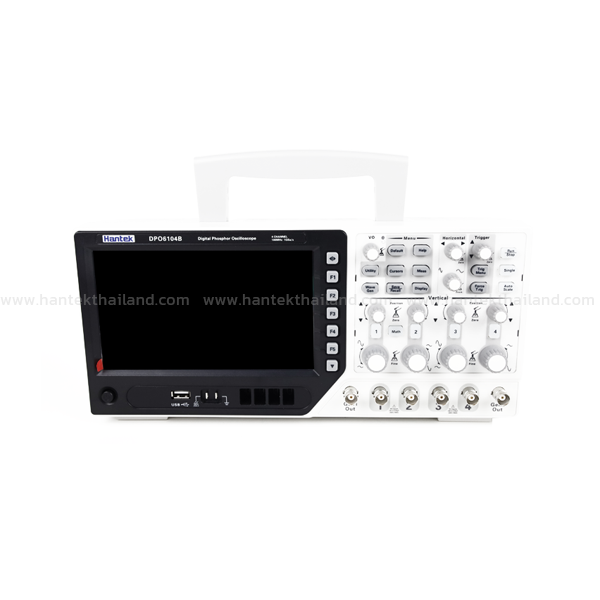

Hantek DPO6104B ดิจิตอลฟอสเฟอร์ออสซิลโลสโคป แบบตั้งโต๊ะ ขนาด 100MHz 4ช่อง (จอสัมผัส)

รายละเอียดสินค้า :

• ·      Six in one oscilloscope: 4 channels oscilloscope + digital voltmeter + FFT spectral analysis.
• ·      60,000 wfms/s (dots display)/400,000 wfms/s (dots display quick acquisition mode) waveform capture rate.

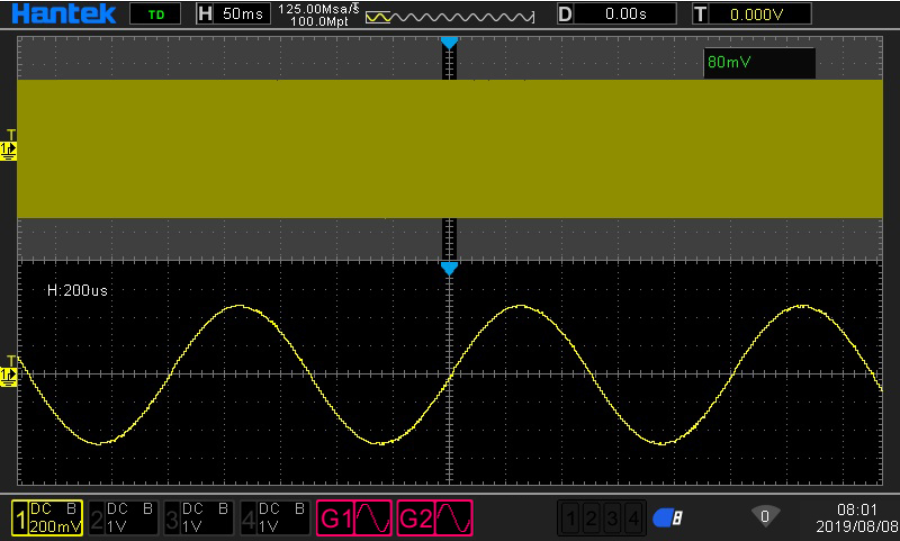

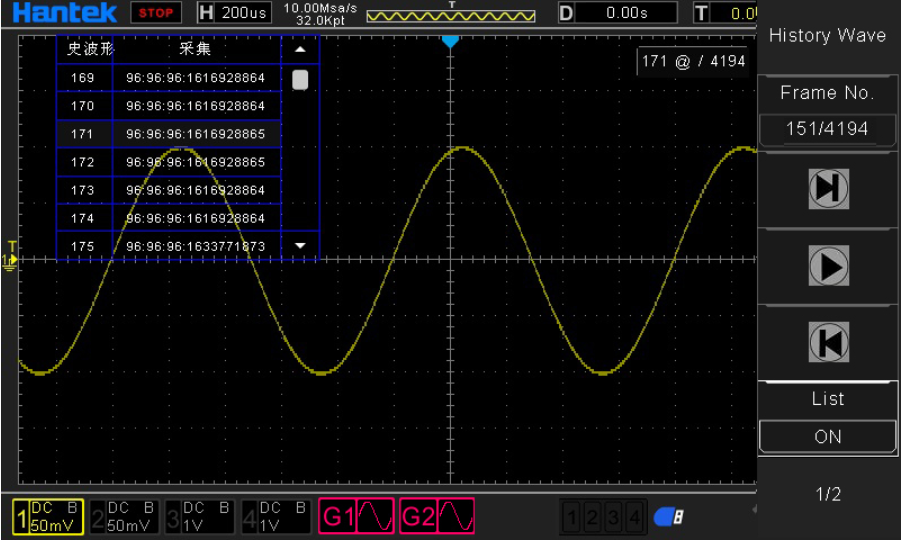

• ·      Segmented acquisition function, support to capture up to 80,000 sections. 256 grade color display.
• ·      Up to 16 kinds of trigger functions, including 5 kinds of protocol triggers. Supply 5 serial decoding option.
• ·      1 GSa/s real-time sample rate of the analog channels. 64 Mpts standard memory depth.
• ·      1 GSa/s real-time sample rate of the digital channels.

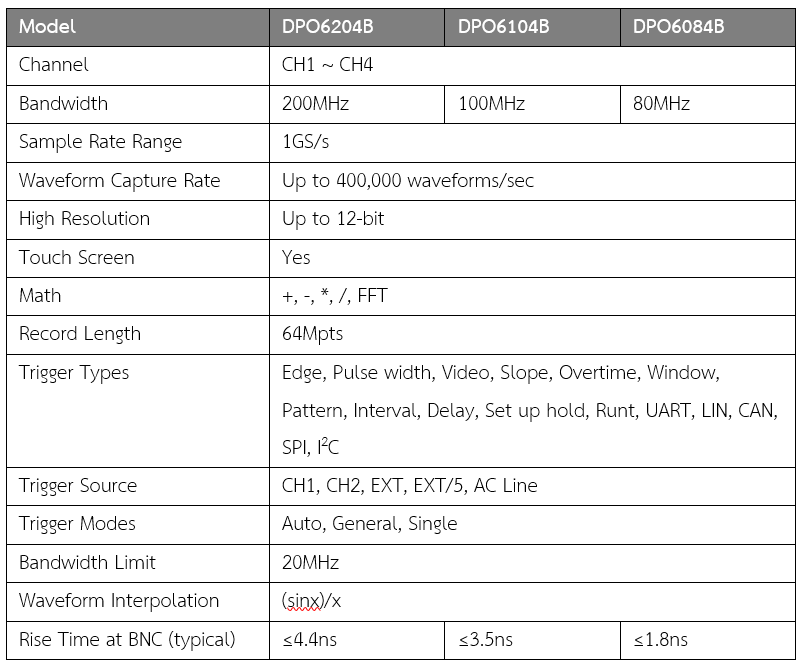

• ·      200 MHz, 100 MHz and 80 MHz analog channel bandwidth.
• ·      Low base noise, 500uV/div to 10 V/div ultra-wide vertical dynamic range.
• ·      7-inch WVGA capacitive touch screen, (800*480) TFT, with ultra-wide screen, vivid picture, low-power consumption and long service life.
• ·      Auto measurement of 42 kinds of waveform parameters (with statistics).
• ·      5 bits digital voltage meter and 6 bits hardware frequency indicator function.

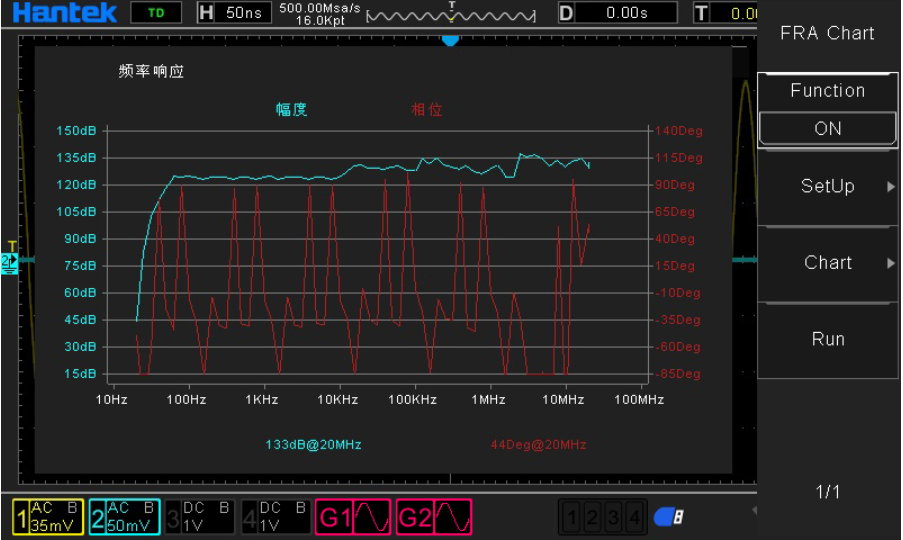

• ·      Bode diagram function (the oscilloscopes with signal source function can use).
• ·      Multiple waveform math operation functions. Event search function.
• ·      Standard interfaces: USB Device, USB Host, LAN, Optional interfaces: HDMI, UART
• ·      Conform to LXI CORE 2011 DEVICE class instrument standards; enable quick,
  economic and efficient creation and reconfiguration of test system. Supports remote command control.

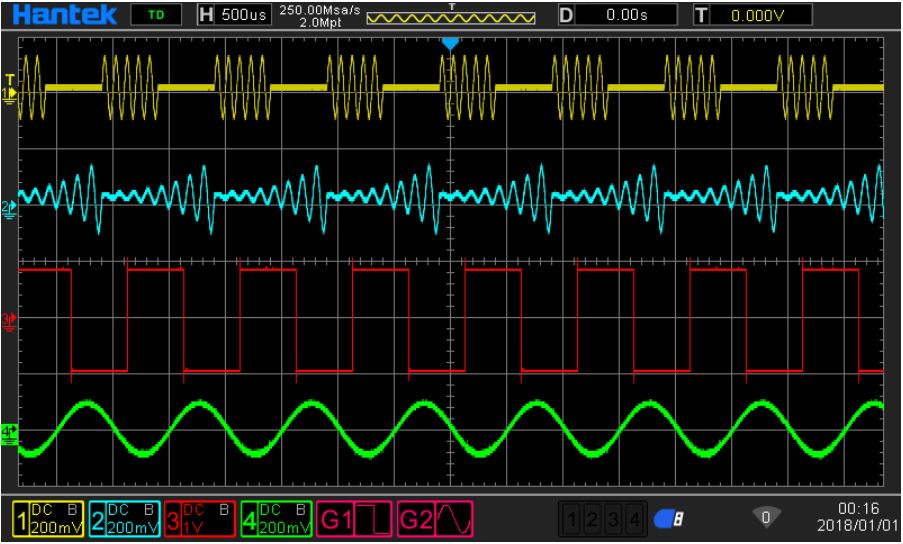

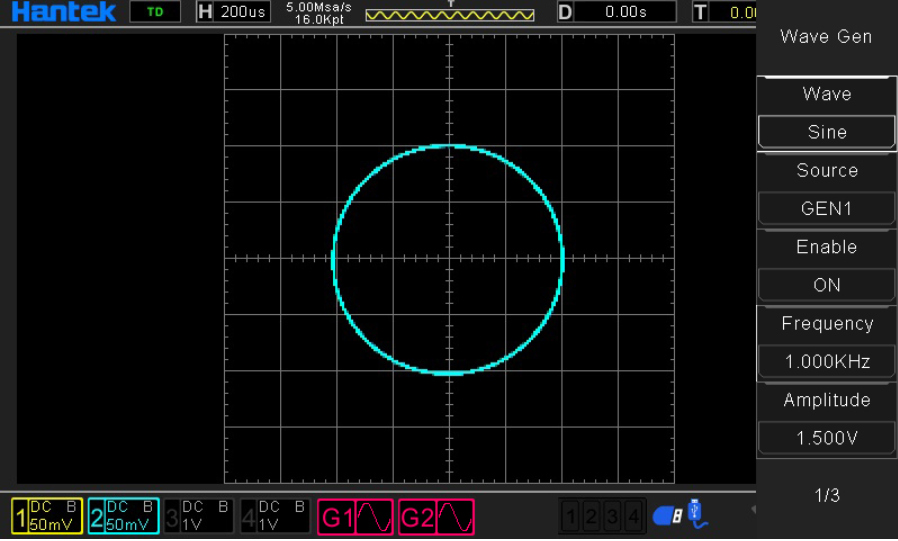

 4-channel oscilloscope+2CH AFG + 16CH LA

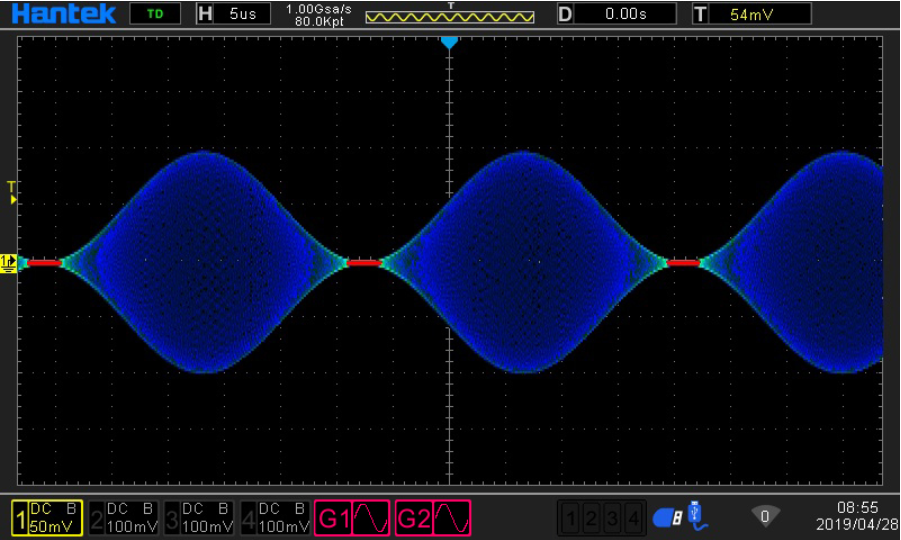

Digital fluorescence display and color temperature display

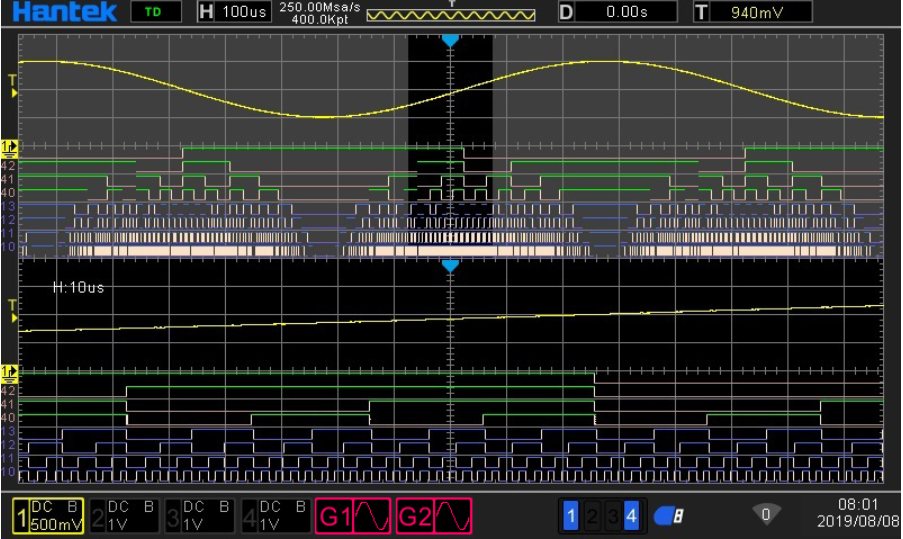

16-channel digital channel

64M memory depth

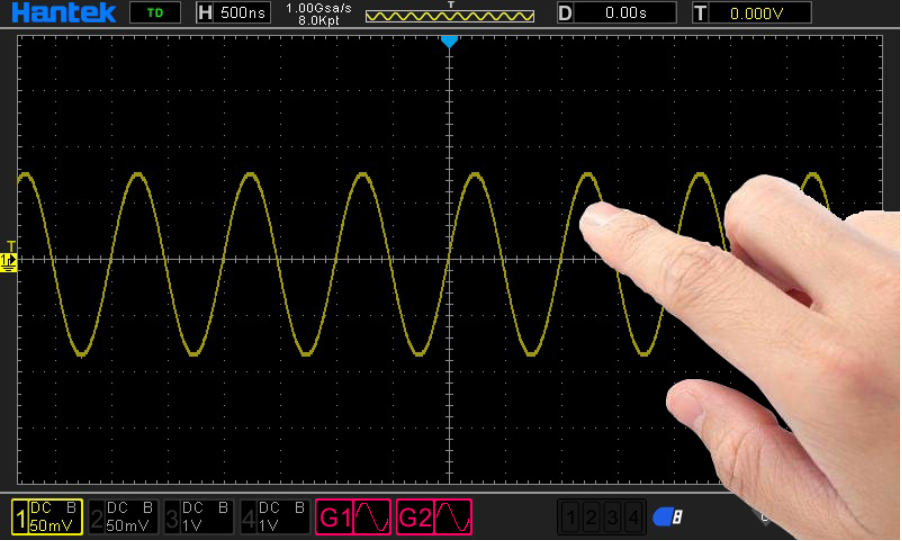

7 inch capacitive touch screen

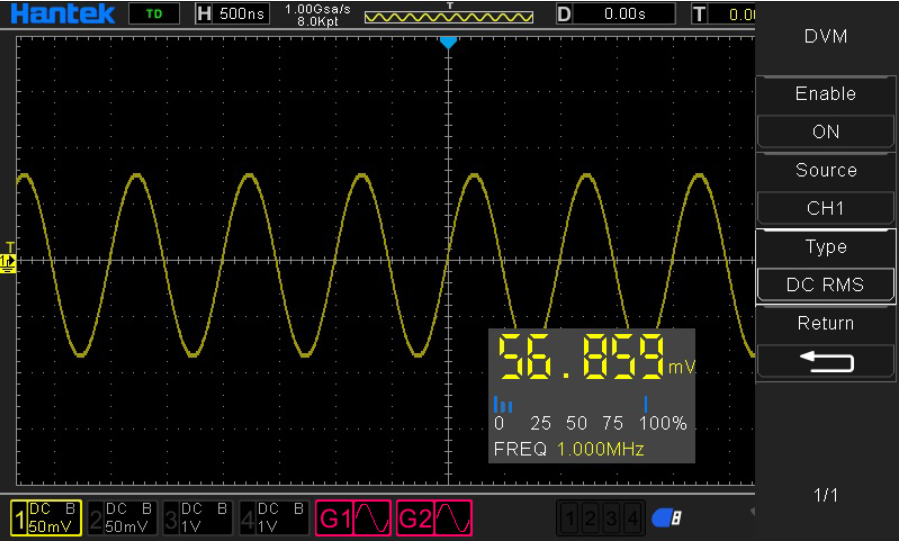

5 bits digital voltage meter , 6 bits frequency indicator

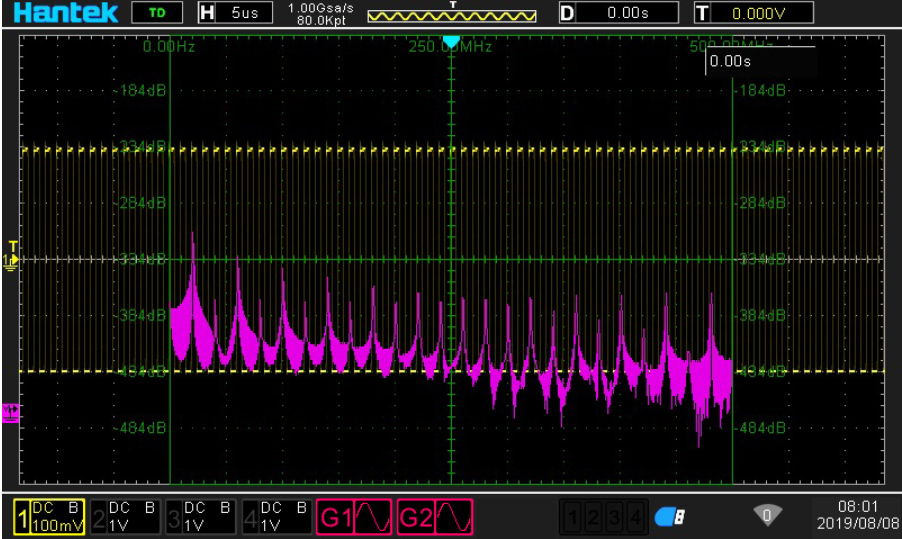

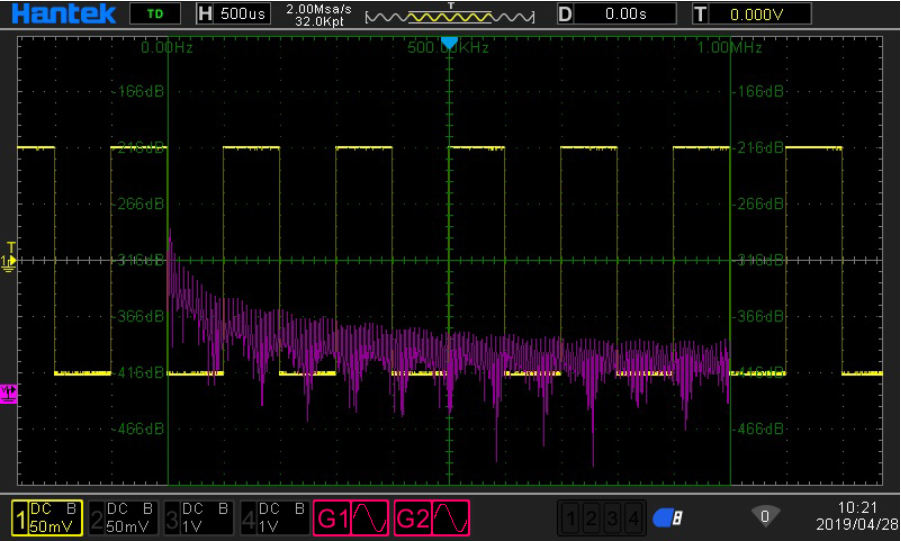

FFT function

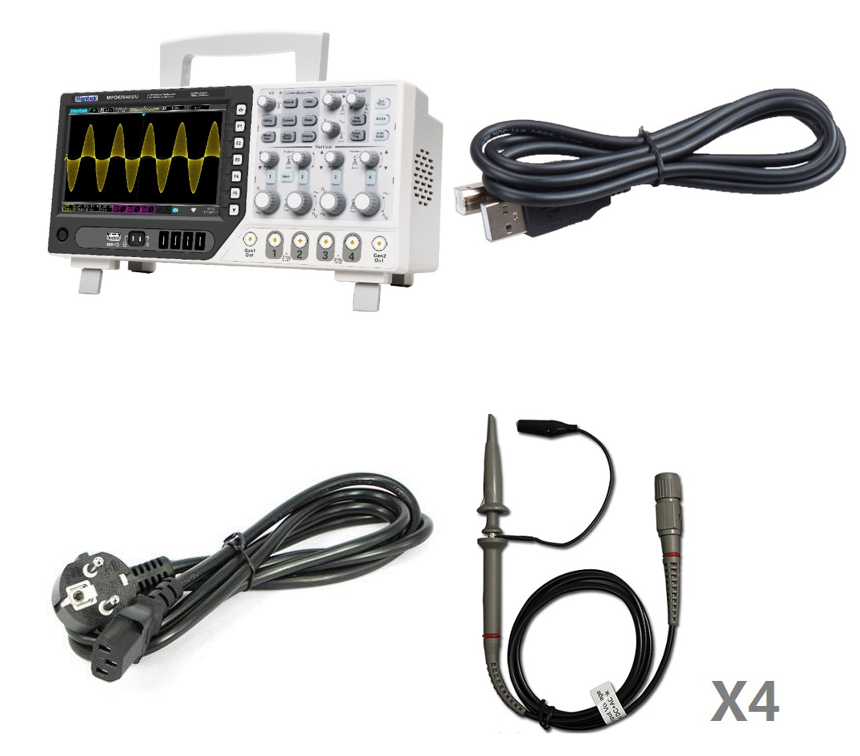

อุปกรณ์ประกอบการใช้งาน :
