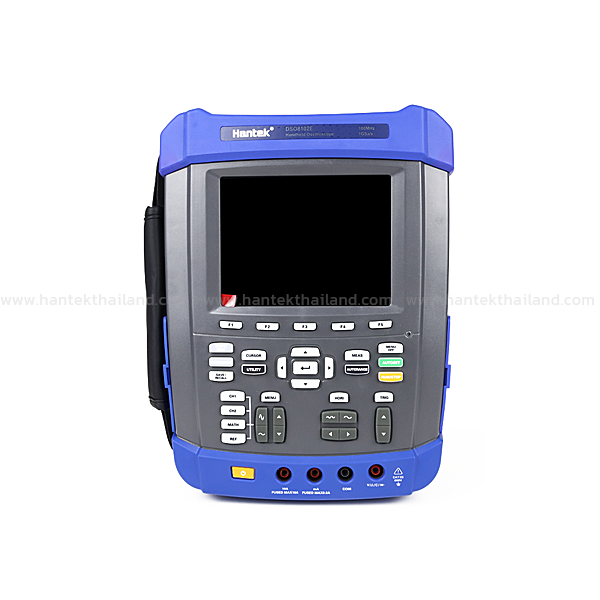

Hantek DSO8102E ออสซิลโลสโคปแบบพกพา ขนาด 100MHz 2ช่อง + ฟังก์ชันเจนเนอร์เรเตอร์

รุ่นสินค้า :

รายละเอียดสินค้า :

·     Six in one: Oscilloscope/Recorder/DMM/ Spectrum Analyzer/Frequency Counter/Arbitrary Waveform generator.

·     IP-51 rated for dust, drip and shake proof to withstand harsh environments.

·     Large fuse confirms to European Safety Standard.

·     Battery indicator with easy-changed connect points. Selectable 18650 battery box for matching 18650 battery by yourself.

·     Anti-theft lock hole, tripod fixed hole, hang rope, FLASH light that can be used in darkness.

·     Replaceable BNC safety joints, and additional one set of joints.

·     High bandwidth 70MHz-200MHz Oscilloscope, 1GSa/s sample rate, 2M Memory depth.

·     25Mz Arb. Waveform Generator, 200 Mesa/s DDS, 12 bit vertical resolution, easy for simulating transducer

·     6000 Counts DMM, AC/DC voltage, AC/DC current, resistance, break, capacitance, and diode function.

·     FFT spectral analysis; Waveform Math: add, subtract, multiply and divide; X-Y mode; more than 20 automatic measurements; PASS/FAIL Check function, apply to engineering application.

·     Abundant trigger function, double timebase sampling, easy to observe two waveforms in different frequency.

·     Record and replay of more than 1000 waveforms.

·     Large 5.6 inch TFT Color LCD Display; High Resolution (640*480)

·     USB Host/Device 2.0 full-speed interface; support removable disk; easy to control by PC or long-distance.

อุปกรณ์ประกอบการใช้งาน :
