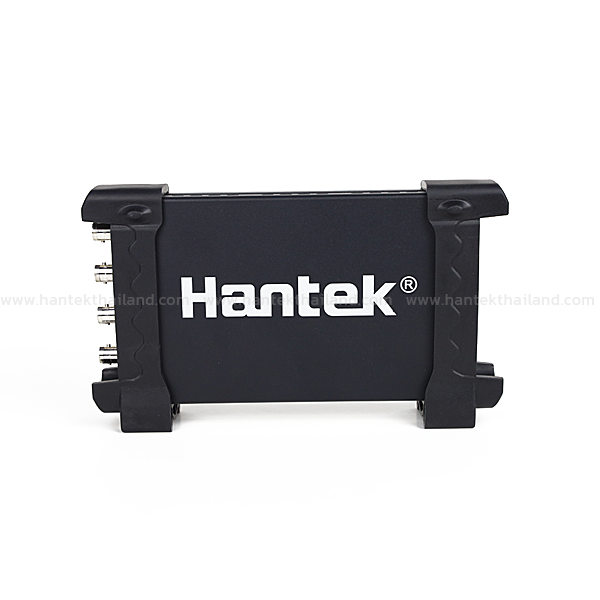

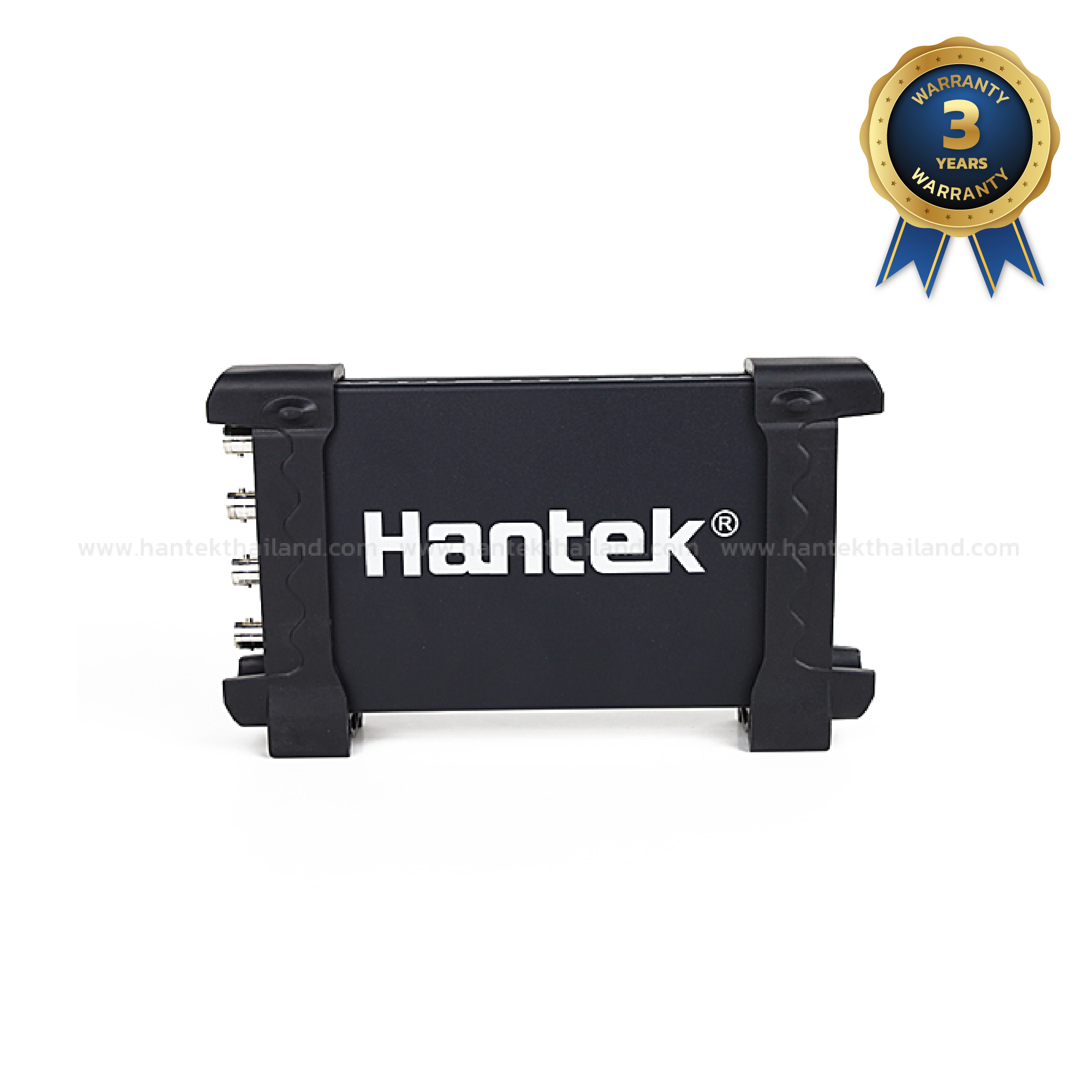

Hantek 6254EU PC USB ออสซิลโลสโคปขนาด 250 MHz 4 ช่อง

รุ่นสินค้า :

รายละเอียดสินค้า :

·   4 analog channels, waveform capture rate is 400,000FPS.

·  1GSa/s real-time sampling rate, 500uV-10V/DIV input sensitivity, and 250MHz bandwidth.

·  128Mpts memory depth, 80,000 section fragmentation. Segmented capture the event which meets the condition with very small deadtime.

·  Pass/fail test, resourceful trigger function, dynamic cursor tracking, waveform record and replay function. The operation interface is similar to banchtop oscilloscope, easy to operate with high cost performance.

·  Good mechanical design with small size which is easy for carrying. The outer case is made by the same material with iPad - Anodised aluminium. It has great heat resistance and abrasive resistance with beautiful appearance. The hardness of aluminium alloy surface is greatly improved.

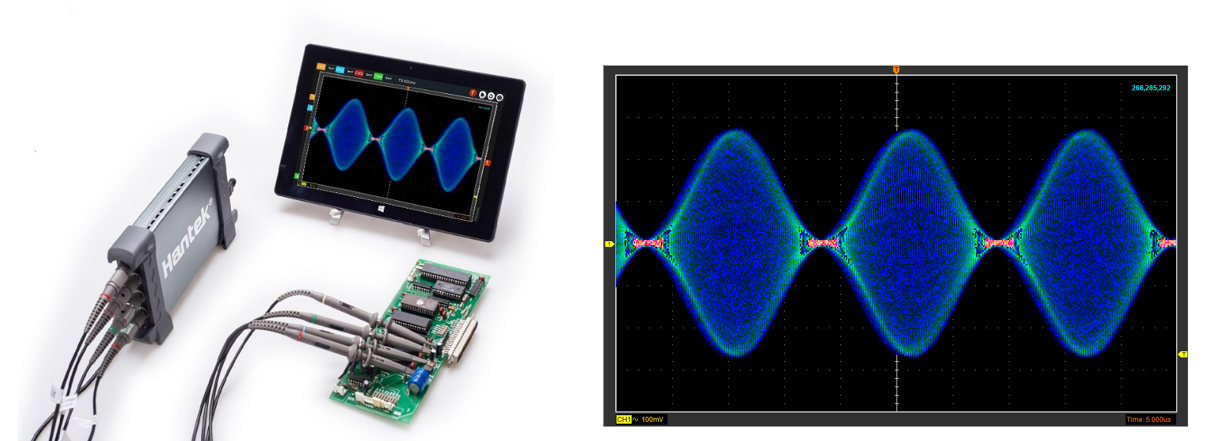

·  Fit for the portable computers, table PC, and repairing/fixing of production line. Suitable for business trip use.
Software support: Windows10, Windows 8, Windows 7

·  The waveform data could be output to EXCEL,BMP,JPG as time and voltage category.

·   More than 20 kinds of automatic measurement function, PASS/FAIL Check function, fit for engineering application.

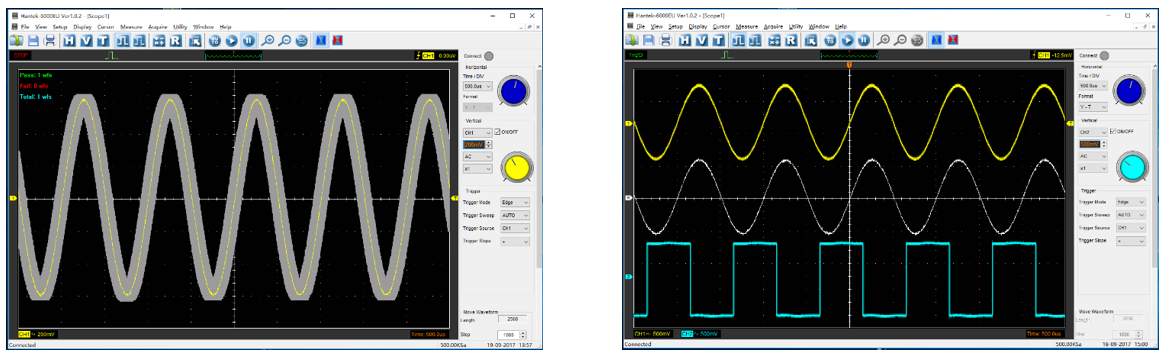

·   Waveform averaging, afterglow, lightness control, reverse, add, subtract, multiply, divide, X-Y display. FFT spectrum analyzer

·   One computer could connect with multiple oscilloscopes, expand the channel number easily.

·  Provide secondary development library DLL; Provide Labview\VB\VC\QT  developing examples.

อุปกรณ์ประกอบการใช้งาน :
