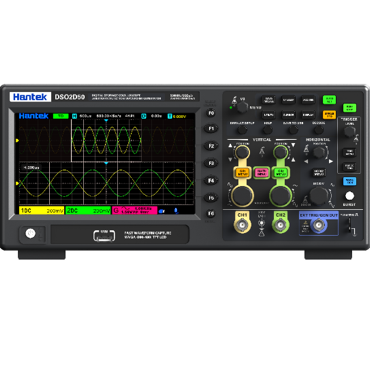

Hantek DSO2D50 Digital Storage Oscilloscope 500 MHz 2CH (2GSa/s) + AFG

รายละเอียดสินค้า :

·      2 channels which are respectively controlled by independent knobs

·      500MHZ analog channel bandwidth

·      Maximum sampling rate up to 2 GSa/s

·      80Kpts memory depth

·      Vertical range 500µV/div ~ 10V/div

·      Support 1MΩ/50Ω impedance switching to ensure signal integrity

·      Built in arbitrary waveform generator, capable of outputting 5 standard waveforms, supports custom arbitrary waveform output, and supports burst output

·      Protocol Trigger: Comes with five standard serial protocol triggers and decoding, supporting protocols including UART, LIN, CAN, SPI, IIC, making it easy to analyze serial bus data

·      32 automatic measurement and threshold measurement functions, with test results supporting statistical analysis

·      Two sets of digital voltmeter functions and hardware frequency meter functions

·      Standard SCPI remote control instructions, convenient for users to build testing systems

·      Save and export function, which can save settings CSV, Information such as images, reference waveforms, and waveforms

·      Four sampling methods: normal, average, peak, and high-precision

·      14 operating languages, supporting over 90% of countries and regions worldwide

·      There are two cursor measurement modes: manual and tracking, and the Math function also supports cursor measurement

·      300V CAT II withstand voltage input

·      FFT scale display, convenient for reading results

·      Manual, single time, one click AUTO measurement, simple and fast waveform measurement

·      XY mode supports dual window display, making it easy to understand waveform phase changes

1MΩ/50Ω impedance switching

Adapt to different measurement scenarios, ensure the accuracy of signal measurement and reduce the impact on the tested circuit.

Built in one signal generator

Built in arbitrary waveform generator, capable of outputting 5 standard waveforms, with built-in waveform editor, supporting custom arbitrary waveform output.

Measurement and statistical functions

The measurement items include 32 categories, and the statistical function can display five measurement values: current value, average value, maximum value, minimum value, and standard deviation.

Save and retrieve function

The machine can save settings, CSV, Images, reference waveforms, waveforms, and other information.

Four collection modes

There are four acquisition modes: normal, average, peak, and high-precision.

Multiple mathematical operation functions

Support commonly used mathematical operations: addition, subtraction, multiplication, division FFT. FFT supports multiple window functions.
