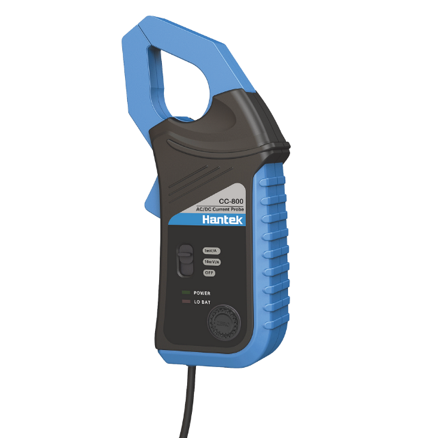

Hantek CC-800 แคลมป์วัดกระแสขนาด 800A

รุ่นสินค้า :

รายละเอียดสินค้า :

·      5kHz Bandwidth

·      10mV/1A and 1mV/1A Resolution

·      AC/DC frequency range: Up to 5kHz

·      Effective Measurement Range: 1A to 800A

·      It is a transducer which allows your multimeter to measure current data and enable your oscilloscope to measure the current waveforms.

·      Its current transducer is composed by permalloy and hall element, which linearly transform the AC or DC current to AC or DC current voltage. And if connect to an oscilloscope by BNC type connector, you're able to observe the current waveforms; If connect to a multimeter by banana type connector, you can obtain the current data.
