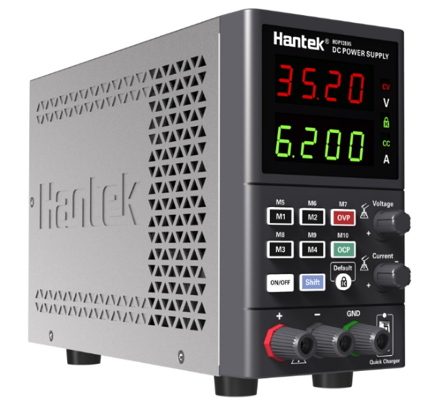

Hantek HDP180V8S แหล่งจ่ายไฟกระแสตรงขนาด 0-80V/8A

·       Four digit display voltage and current, resolution up to 10mV/1mA;

·       Standard USB quick charging function, 5-12V output, supporting a variety of quick charging protocols;

·       10 groups of data storage/retrieval functions;

·       AC input voltage 230/115V switch, universal;

·       Fully isolated serial port, software support multiple power supply control, easy to set up measurement and control or aging system;

·       Over voltage, over current, overload, overheating, short circuit protection functions;

·       Low noise temperature control fan, quiet and durable;

·       0~80V/0~8A output is stable and pure; On/Off output control, one-key panel lock function to prevent mis-operation;

·       Constant voltage (CV)/ constant current (CC) mode automatic switch, effectively protect the circuit;

·       Two-stage adjustment topology, no impact on the load when the power is turned on;

·       Ultra-thin body, light and easy to carry, excellent indicators, excellent quality, stable performance, strong durability.

Small size, high power, full protection

Ultra-thin body, abundant power, stable performance. Over voltage, over current, overload, overheating, short circuit protection functions. Constant voltage (CV)/ constant current (CC) automatic switch. It can be used as constant voltage source or constant current source.

Support computer control, multi-machine linkage

Fully isolated serial port, software support multiple power supply control at the same time, Easy to set up measurement and control or aging system; 10 groups of data storage/retrieval functions.

Intelligent cooling system

Low noise temperature control fan, quiet and durable. Reasonable cooling air duct design, all-weather full load work without burning machine, more lasting work. 230V/115V switchable input, universal.

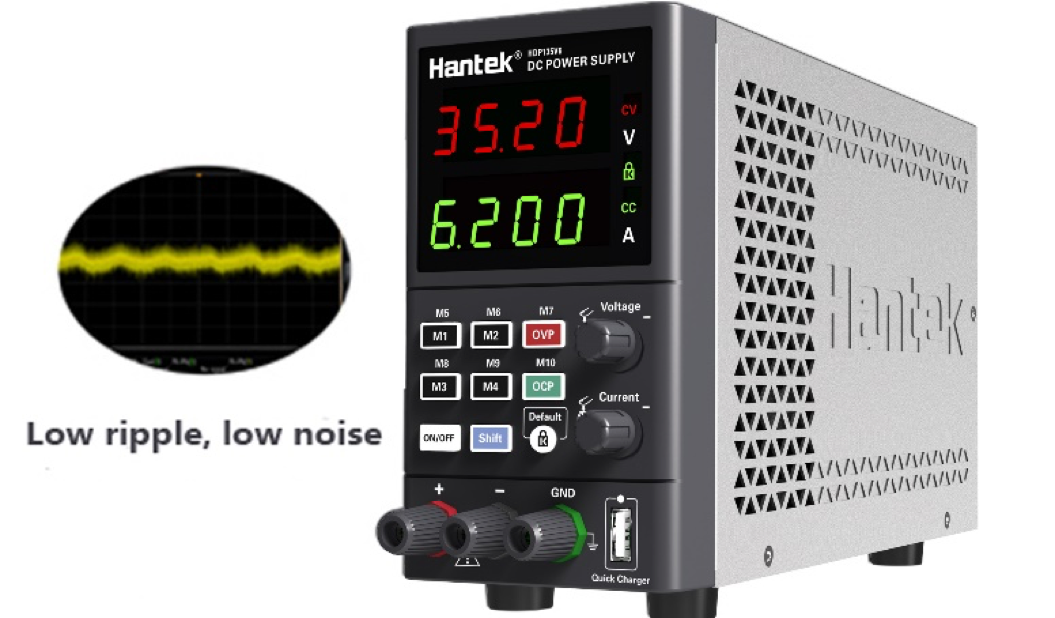

Low ripple, low noise

10mVrms Low ripple low noise.
10mV/1mA reading resolution, high voltage/current output accuracy.

USB quick charging function

Automatic recognition of fast charging protocol and adjustment of output voltage and current.
5V/ 3.4A, 9V/2.0A, 12V/1.5A can provide a maximum of 18 W output power. DCP (Apple, Samsung and BC1.2), Qualcomm QC2.0/QC3.0, Huawei Quick Charge Protocol FCP, Samsung Quick

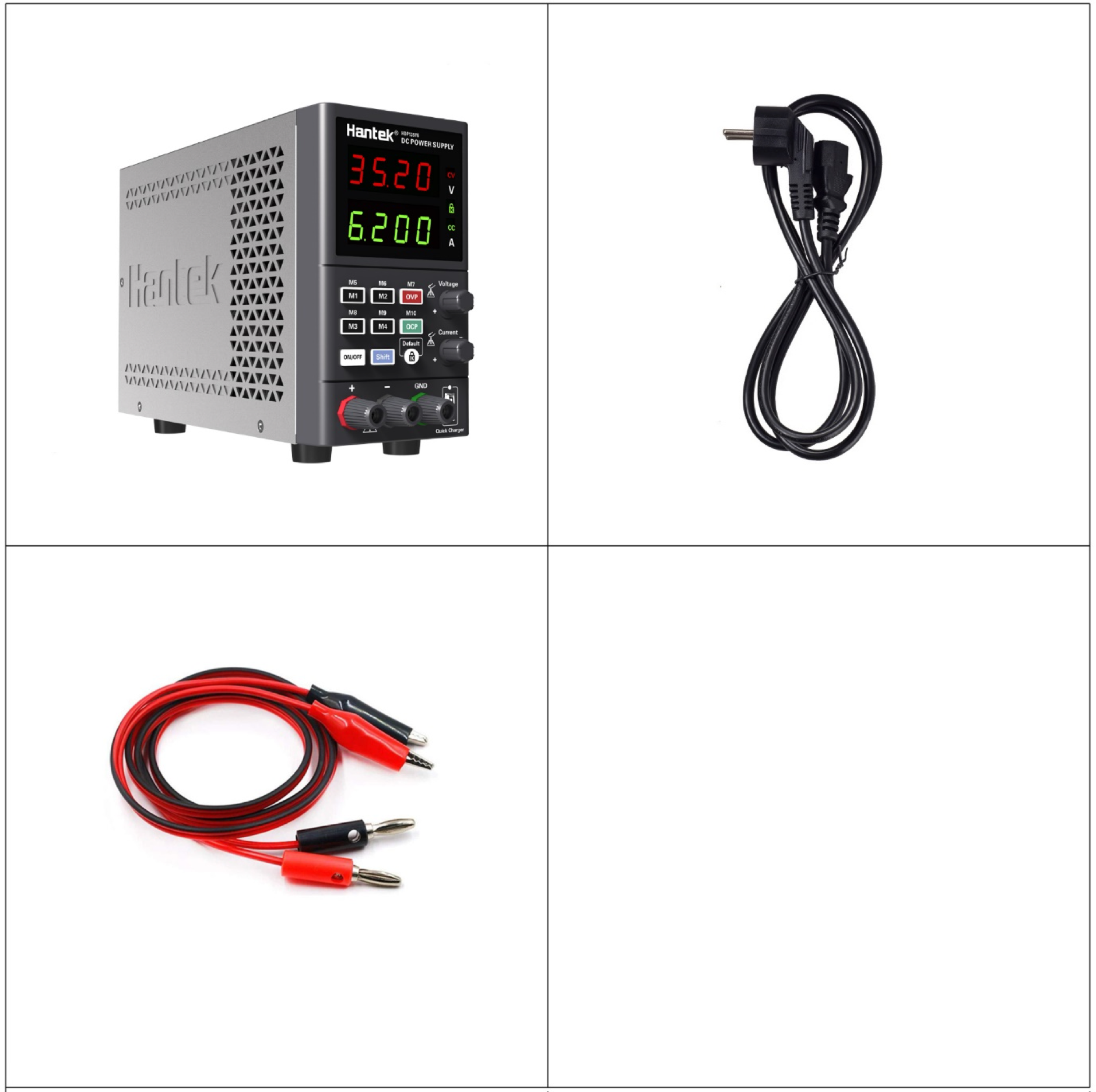

อุปกรณ์ประกอบการใช้งาน :
